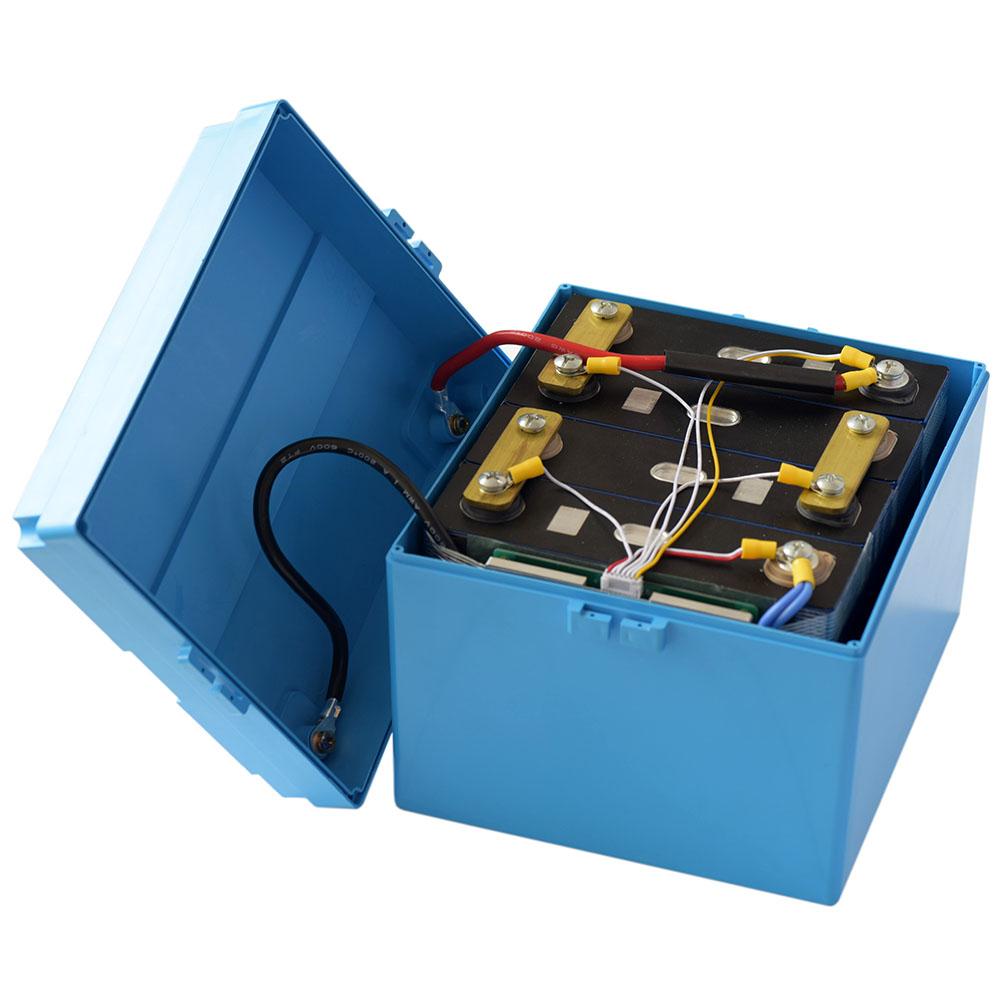

12V 100Ah LiFePo4 storage battery pack
12V 100Ah LiFePo4 battery pack Battery Features:
1.High capacity, low inner resistance, long cycle life, low self-discharge
Long cycle life, more than 500 charge/discharge cycles under normal use.
2.No memory effect, economically and conveniently.
3.Handling performance, maintenance-free and wide application.
Strong current charge and discharge capability,Green Power
4.Powerful output, maximize your electronic appliances performance.
5.More flexible,size and capacity can be customzied
The Applications of 12V 100Ah LiFePo4 battery pack
-LED light system;
-Portable VTR/TV, tape recorders, radios, etc.
-Power tools, lawn mowers and vacuum cleaners
-Cameras and photographic equipment
-Portable measuring equipment
-Various power toys and recreational equipment
-Uninterruptible Power Supply
-Communications and electric equipment
-Emergency lighting equipment
12V 100Ah LiFePo4 battery pack Battery Basic specifications
Basic Spec | ||
Model | 12V100Ah | |
Single cell voltage | 3.2V | |
D×W×H | H130mm*W200mm*L400mm | |
Nominal Voltage | 12V | |
Nominal Capacity | 100Ah | |
Internal Resistance | ≤420mΩ | |
End of charge Voltage | 14.6V | |
End of charge Current | 100mA | |
End of discharge Voltage | 9.2V | |
Charge Method | 0.2C (0.5A) CC/CV | |
Max.Continuouscharge currnt | 50A | |
Nominal Discharge Current | 100A | |
Max. Pluse Discharge Current | 150A/10S | |
Weight | ≤10.5Kg | |
Operating Temp. | Charge | 0~45℃ |
Discharge | -10~55℃ | |
Storage Temp.(60-80% SOC Storage) | -10~45℃ | |
Capacity@1C rate 0.2C | ≥100Ah | |
Cycle Life | 1500 times(Cycle @RT, | |
