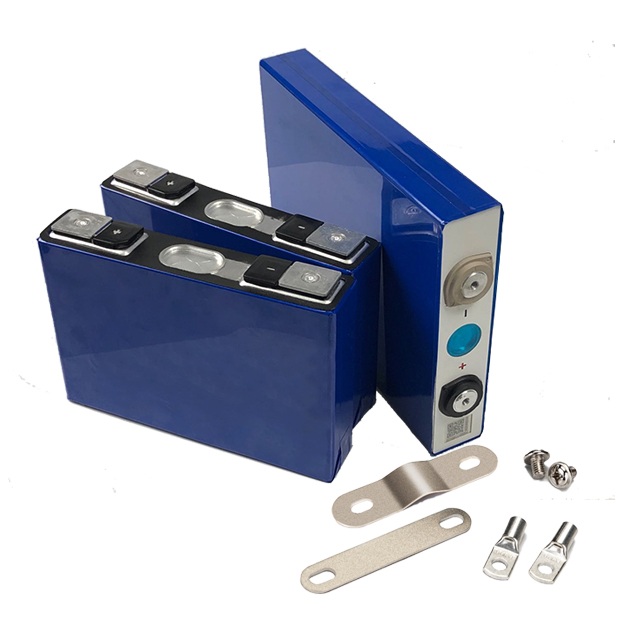

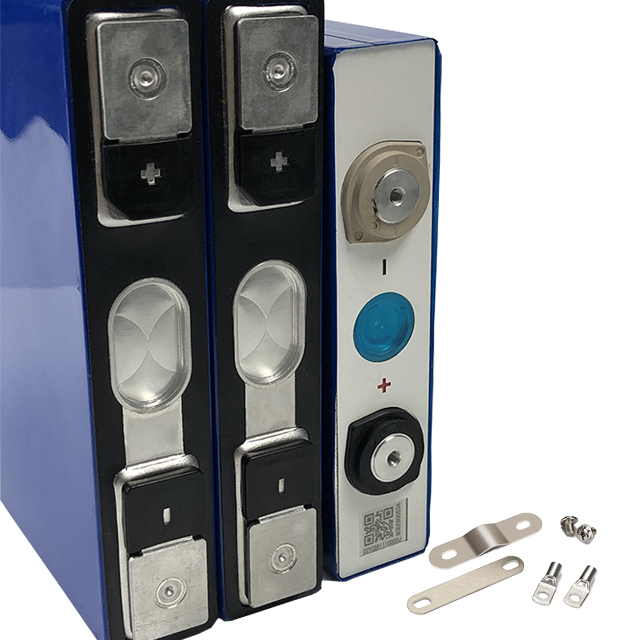

3.2V 60ah lifepo4 battery cell
3.2Ｖ 60ah lifepo4 battery Battery Features:
Powerful energy :as the high voltage and light weight ,Motors acceleration speed performance are very good
Energy density per volume are higher
Stable BMS system with short-circuit protection ,over-charge protection ,over-discharge protection and over-current protection fuctions.
It can run well under different temperature environment condition
No memory effects.
The Applications of 3.2Ｖ 60ah lifepo4 battery
-LED light system;
-Portable VTR/TV, tape recorders, radios, etc.
-Power tools, lawn mowers and vacuum cleaners
-Cameras and photographic equipment
-Portable measuring equipment
-Various power toys and recreational equipment
-Uninterruptible Power Supply
-Communications and electric equipment
-Emergency lighting equipment
3.2Ｖ 60ah lifepo4 battery Battery Basic specifications
Model | 3260 |
Standard capacity | 62.4Ah |
Minimum capacity | 60Ah |
Working temperature | 2.50-3.65V |
Internal resistance | ≤0.50mΩ |
Charge temperature | 0-55℃ |
Discharge temperature | -20-55℃ |
Net weight | 1.5KG |
Dimension | 183*148*28mm(L*W*T) |
Self-discharge rate/month | ≤3.5% |
Standard charge current | 0.5C 30A |
Stanard charge voltage | 3.65V |
Standard charge mode | CC/CV |
Standard charge temperature | 25℃ |
Standard discharge current | 0.5C 30A |
Max continuous discharge current | 1C 60A |
Max pulse discharge current(long pulse) | 120A(around 3 minutes) |
Max pulse discharge current(short pulse) | 180A |
Lifecycle | 1500-2000 times |
Discharge cut off voltage | 2.5V |
Standard discharge temperature | 25℃ |
Storage temperature | -20-55℃ |
