48V 100ah lifepo4 battery pack for solar system and tourist car
48V 100ah lifepo4 battery pack Battery Features:
1. Safe and reliable, non-explosive under piercing, non-incinerated under over voltage
2. No memory effect, more than 2000 times cycle-life
3. Prefect for energy storage and power tool use
4. About 1/3 the weight of lead-acid batteries
5. Have no environment pollution
6. Long cycle-life,high capacity
7. High energy density
8. The consistency is good
9. Discharge of single LifePO4 battery cell is between 2V-4V
10. Package methods:Aluminum,cylindrical and lithium poymer battery shapes
The Applications of 48V 100ah lifepo4 battery pack
Light electric vehicles, energy storage equipment for solar and wind energy, electric tools, electric vehicles, mobile telecommunication base stations, emergency power supply systems.
48V 100ah lifepo4 battery pack Battery Basic specifications
Model | 48100/15S1P |
Nominal voltage | 48V |
Charge votlage | 54.8V |
Nominal capacity | 100Ah |
Battery type | LifePO4 cell |
Battery configation | 15S1P |
Single battery cell | 3.2V 100Ah Lifepo4 |
Standard charge current | 20A |
Max charge current | 50A |
Continuous discharge current | 100A |
Max pulse discharge current | 150A/10S |

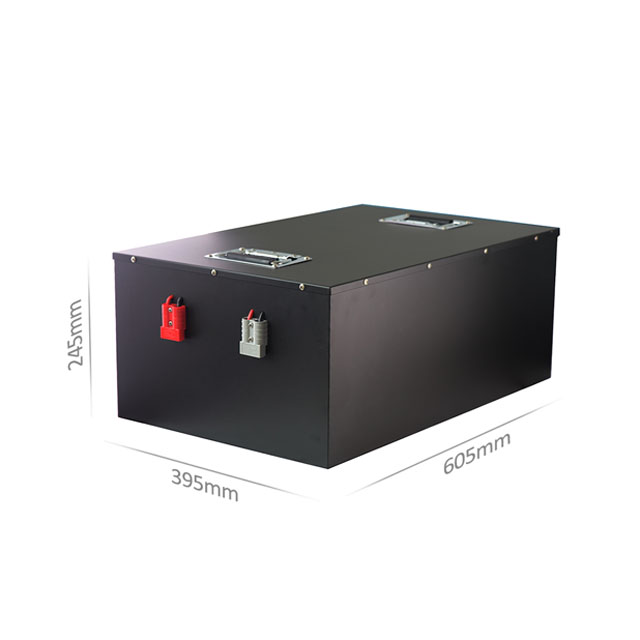

Casing dimension | 605*395*245mm(L*W*H) |
Net weight | around 47KG |
Internal resistance | ≤420mΩ |
End of charge current | 100mA |
Discharge cut off voltage | 34.5V |
Charge method | CC/CV |
Lifecycle | 1500-2000 times |
Warranty | 2 years |
Charge temperature | 0~45℃ |
Discharge temperature | -10~55℃ |
Storage temperature | -10~45℃ |
