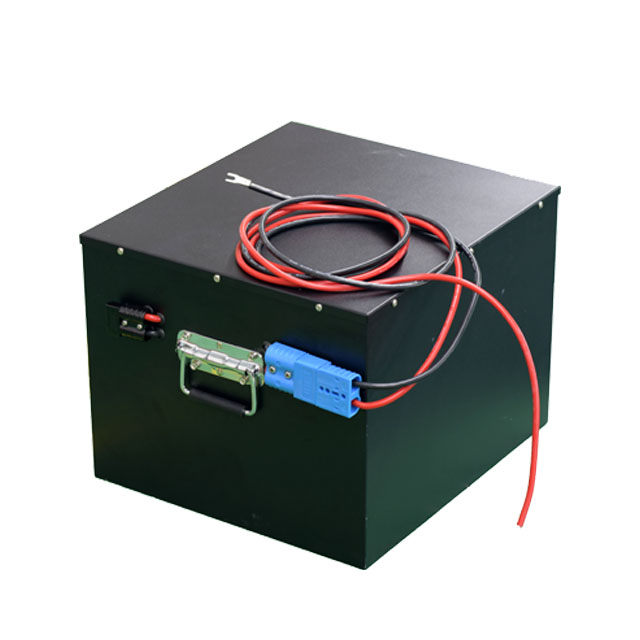

72V 100Ah lifepo4 car battery
72V 100Ah lifepo4 battery Battery Features:
Powerful energy :as the high voltage and light weight ,Motors acceleration speed performance are very good
Energy density per volume are higher
Stable BMS system with short-circuit protection ,over-charge protection ,over-discharge protection and over-current protection fuctions.
It can run well under different temperature environment condition
No memory effects.
The Applications of 72V 100Ah lifepo4 battery
Light electric vehicles, energy storage equipment for solar and wind energy, electric tools, electric vehicles, mobile telecommunication base stations, emergency power supply systems.
72V 100Ah lifepo4 battery Battery Basic specifications
Product Model | 72V100Ah | |
Length*Width*Height ( mm ) | <39.5*36*29.5cm | |
Nominal Voltage ( V ) | 72 | |
Nominal Capacity ( Ah ) | 100 | |
Ac Impedance ( mΩ ) | ≤200 | |
Cut-off Voltage ( discharge, single cell ) ( V ) | 2.75.0±0.05 | |
Cut-off Voltage ( charge, single cell ) ( V ) | 3.65±0.025 | |
Standard Charge Current ( A ) | 0.2C | |
Max Charge Current ( A ) | 0.2C | |
Standard Discharge Current ( A ) | 0.5C | |
Max Discharge Current ( A ) | 2.0C | |
Charge Method | Constant Current, Constant Voltage | |
Weight ( kg ) | 61.7 | |
Working Temperature°C | Charge | 0~45°C |
Discharge | -20~45°C | |
Storage Condition | 0~30°C,Humidity 10-85%,30-50% Capacity,charge and discharge every 1 months | |
Cycle Life(Room Temperature, 23±2°C, Standard Charge and Discharge ) | 1000 times(Residual Capacity 60%,100% DOD) | |
Connect Pin | Red: +, Black: - | |
