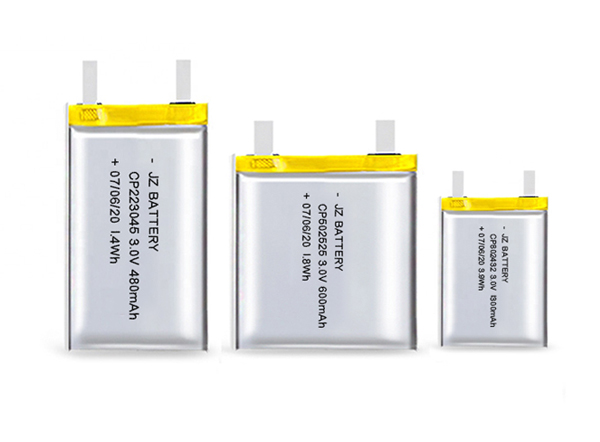

CP Ultra Thin Battery
CP Ultra Thin Battery
KEY FEATURES
CP Battery
▪ High energy density
▪ High single cell voltage
▪ Light weight
▪ Small Size
▪ High security
▪ Stable operating voltage
▪ Wide operating temperature range
▪ Low self-discharge rate
▪ Flexible on shape design
▪ Restricted for UL,UN38.3 and ROHS
APPLICATION
Variable Design
Battery of variable dimensions can be selected to fit in the customer’s design
Custom batteries and battery packs are also available
Greater Safety
The structure of the battery offers greater safety to meet customer’s requirement for special applications
Technical Parameters
| Model | Size(mm) |
Nominal Voltage (V) |
Nominal Capacity (mAh) |
Standard Discharge Current(mA) |
Max.Discharge Current(mA) | Approx. Weight (g) | ||
| Continuous | Pulse | |||||||
| CP405555 |
|
4.5×55.0×55.0 | 3.0v | 6500 | 20 | 1100mA | 2200mA | 23.0 |
| CP133642 |
|
1.30×36.0×42.0 | 3.0v | 300 | 5.0 | 30mA | 100mA | 3.0 |
| CP3023120 |
|
3.0×23.0×120.0 | 3.0v | 2000 | 10.0 | 300mA | 600mA | 15 |
| CP1204346 |
|
13.0×43.0×64.0 | 3.0v | 10000 | 20 | 2000mA | 4000mA | 60.0 |
| CP1005555 |
|
10.5×55.5×55.5 | 3.0v | 8000 | 10 | 1600mA | 2800mA | 55.0 |
| CP903450 3800mAh |
|
9.2×34.5×50.5 | 3.0v | 3800 | 10.0 | 1000mA | 2000mA | 29 |
| CP903450 |
|
9.2×34.5×50.5 | 3.0v | 3500 | 10.0 | 1000mA | 2000mA | 29 |
| CP705050 |
|
7.3×50.0×50.0 | 3.0v | 5000 | 20.0 | 1100mA | 2200mA | 33.0 |
| CP702236 |
|
7.3×22.5×38.0 | 3.0v | 1300 | 10.0 | 300mA | 500mA | 11.0 |
| CP642026 |
|
6.4×20×28.7 | 3.0v | 550 | 5.0 | 75mA | 150mA | 7 |
| CP605050 |
|
6.0×50.0×50.0 | 3.0v | 3800 | 20.0 | 1100mA | 2200mA | 35 |
| CP603450 |
|
6.1×34.5×50.5 | 3.0v | 2400 | 20.0 | 500mA | 1000mA | 20.0 |
| CP603147 |
|
6.2×32.5×51.0 | 3.0v | 1900 | 10.0 | 400mA | 800mA | 19.0 |
| CP552338 |
|
5.5×23.5×38.0 | 3.0v | 1000 | 5.0 | 125mA | 400mA | 9 |
| CP504644 |
|
5.2×46.5×44.5 | 3.0v | 2300 | 20.0 | 200mA | 500mA | 18.5 |
| CP503450 2200mAh |
|
5.3×33.5×50.5 | 3.0v | 2200 | 10.0 | 300mA | 600mA | 17 |
| CP405555 |
|
4.20×55.0×55.0 | 3.0v | 3250 | 20.0 | 600mA | 1000mA | 23.0 |
| CP401536 |
|
3.20×18.0×37.0 | 3.0v | 350 | 5.0 | 50mA | 100mA | 3.5 |
| CP304050 |
|
3.2×34.5×50.5 | 3.0v | 2400 | 5.0 | 100mA | 400mA | 10.0 |
| CP302756 |
|
3.0×27.0×56.0 | 3.0v | 1150 | 5.0 | 100mA | 300mA | 8.0 |
| CP263638 |
|
2.8×37.0×39 | 3.0v | 700 | 10.0 | 100mA | 200mA | 6 |
| CP243842 |
|
2.6×37.5×43 | 3.0v | 700 | 10.0 | 100mA | 200mA | 6 |
| CP224248 |
|
2.3×45.0±0.5×48.5±0.5 | 3.0v | 850 | 10.0 | 100mA | 150mA | 7 |
| CP224136 |
|
2.3×40.5×37.5 | 3.0v | 600 | 10.0 | 100mA | 200mA | 6 |
| CP155050 |
|
1.50×50.5×50.5 | 3.0v | 600 | 5.0 | 50mA | 200mA | |
| CP142828 |
|
1.45×28.5×28.5 | 3.0v | 175 | 1.0 | 30mA | 50mA | 2.0 |
| CP124920 |
|
1.25×49.0×20.0 | 3.0v | 160 | 1.0 | 20mA | 40mA | 1.7 |
| CP052039 |
|
0.55×20.0×39.0 | 3.0v | 30mAh | 5.0 | 3mA | 10mA | |
| CP044040 |
|
0.47×40.5×40.5 | 3.0v | 55 | 1.0 | 5mA | 30mA | 1 |
| CP042722 |
|
0.47×27.0×22.5 | 3.0v | 15 | 0.25 | 3mA | 10mA | 0.6 |
| CP042345 |
|
0.47×23.5×45.5 | 3.0v | 35 | 0.5 | 2mA | 4mA | 0.8 |
| CP352238 |
|
3.7×23×39 | 3.0v | 600 | 1 | 150mA | 300mA | 4.5 |
| CP12040185 |
|
13×210×195 | 3.0v | 21000 | 3000 | 9000mA | 15000mA | 850 |
| CP7839109 |
|
8×40×110 | 3.0v | 10000 | 10 | 3000mA | 5000mA | 68.0 |
| CP2213125 |
|
2.2×13×127 | 3.0v | 480 | 1 | 50mA | 80mA | 4.2 |
| CP2012120 |
|
2×12×127 | 3.0v | 480 | 1 | 50mA | 80mA | 4.2 |
| CP1202425 |
|
12×25.5×26 | 3.0v | 1100 | 5 | 300mA | 500mA | 9.0 |
| CP802670 |
|
8×26×70 | 3.0v | 3800 | 10 | 1500mA | 2000mA | 26.0 |
| 783970H |
|
8.8×39.5×70.5 | 3.0v | 5500 | 10 | 3000mA | 5000mA | 38.0 |
| CP756590 |
|
7.7×66×90 | 3.0v | 8300 | 8.3 | 4000mA | 8300mA | 85.0 |
| CP703435 |
|
14.5×35×36 | 3.0v | 2000 | 5 | 1500mA | 3000mA | 27.5 |
| CP702440 |
|
7.2×24.5×40.5 | 3.0v | 1500 | 5 | 500mA | 800mA | 11.0 |
| CP702242 |
|
7.2×22.5×42.5 | 3.0v | 1500 | 5 | 600mA | 1000mA | 10.5 |
| CP651848 |
|
6.5×17.8×47.5 | 3.0v | 1200 | 1 | 400mA | 600mA | 9.0 |
| CP603956 |
|
6.2×39.5×56.5 | 3.0v | 1500 | 5 | 1500mA | 2000mA | 23.0 |
| CP603450 |
|
6.2×35×51 | 3.0v | 2500 | 5 | 1000mA | 1500mA | 17.5 |
| CP603146 |
|
13×33×48.5 | 3.0v | 3900 | 10 | 2000mA | 3000mA | 30.0 |
| CP603048 |
|
6×30×48 | 3.0v | 2200 | 5 | 800mA | 1200mA | 15.0 |
| CP504644 |
|
5.2×46×45 | 3.0v | 2500 | 5 | 1200mA | 2000mA | 17.5 |
| CP503450 |
|
5.2×35×51 | 3.0v | 2000 | 5 | 1000mA | 1500mA | 17.5 |
| CP503440 |
|
5.2×35×41 | 3.0v | 1600 | 5 | 800mA | 1200mA | 11.5 |
| CP503333 |
|
5.2×33×34 | 3.0v | 1200 | 1 | 300mA | 500mA | 9.0 |
| CP502540 |
|
5.2×25×46 | 3.0 | 1200 | 1 | 300mA | 500mA | 8.5 |
| CP502530 |
|
5.2×25.5×30.5 | 3.0v | 800 | 2 | 250mA | 500mA | 6.0 |
| CP501932 |
|
5.2×20×32 | 3.0v | 600 | 1 | 200mA | 300mA | 4.3 |
| CP484558 |
|
4.8×45.5×58.5 | 3.0v | 3500 | 5 | 1500mA | 2000mA | 23.0 |
| CP406080 |
|
4×60×80 | 3.0 | 5200 | 10 | 2000mA | 3500mA | 35.0 |
| CP402023 |
|
4×20.5×25 | 3.0 | 350 | 1 | 100mA | 150mA | 2.8 |
| CP401214 |
|
4×12×14 | 3.0v | 75 | 0.5 | 15mA | 30mA | 0.8 |
| CP352560 |
|
3.5×25.5×61 | 3.0v | 1100 | 5 | 300mA | 500mA | 8.5 |
| CP353440 |
|
7.5×25×42 | 6.0 | 650 | 1 | 200mA | 400mA | 12.0 |
| CP322470 |
|
3.2×24×70 | 3.0v | 1200 | 1 | 300mA | 500mA | 9.0 |
| CP321215 |
|
3.4×12.5×15.5 | 3.0v | 90 | 1 | 20mA | 30mA | 1.0 |
| CP301818 |
|
3×18×18 | 3.0v | 140 | 1 | 30mA | 50mA | 1.5 |
| CP263638 |
|
2.6×36×38 | 3.0 | 700 | 1 | 200mA | 400mA | 5.5 |
| CP255075 |
|
2.6×50.5×75.5 | 3.0 | 2200 | 5 | 800mA | 1200mA | 16.0 |
| CP255070 |
|
2.6×50.5×70.5 | 3.0 | 2000 | 5 | 800mA | 1200mA | 15.0 |
| CP254045 |
|
2.7×40.5×45.5 | 3.0 | 800 | 1 | 200mA | 300mA | 6.5 |
| CP253428 |
|
2.5×34.0×28.0 | 3.0v | 320 | 1 | 100mA | 150mA | 2.8 |
| CP251525 |
|
2.5×15×25 | 3.0 | 150 | 5 | 40mA | 80mA | 2.0 |
| CP244035 |
|
2.4×40×36 | 3.0v | 600 | 1 | 150mA | 300mA | 5.0 |
| CP224035 |
|
2.4×40×36 | 3.0v | 600 | 1 | 150mA | 300mA | 5.0 |
| CP201620 |
|
2.0×16×20 | 3.0v | 65 | 0.5 | 20mA | 30mA | 0.9 |
| CP155070 |
|
1.6×50.5×70.5 | 3.0v | 900 | 5 | 700mA | 1200mA | 7.5 |
| CP134235 |
|
1.3×42×35 | 3.0v | 300 | 1 | 50mA | 100mA | 3.0 |
| CP105050 |
|
1.0×50.5×50.5 | 3.0v | 400 | 1 | 50mA | 100mA | 4.0 |
| CP054848 |
|
0.5×48×48 | 3.0v | 80 | 0.5 | 20mA | 50mA | 1.9 |
| CP355050 |
|
3.5×51×51 | 3.0v | 1900 | 5 | 800mA | 1200mA | 14 |
| CP502537 |
|
5.2×25.5×38.0 | 3.0v | 1200 | 1 | 300mA | 500mA | 8.5 |
| CP903450 |
|
9.2×34×50 | 3.0v | 3400 | 10.0 | 1500mA | 2500mA | 26 |
| CP702630 |
|
7.0×26×30 | 3.0v | 1100 | 5 | 300mA | 500mA | 8 |
| CP702440 |
|
7.2×24×42 | 3.0v | 1600 | 5 | 500mA | 800mA | 11.5 |
| CP603448 |
|
6.1×34.5×50.5 | 3.0v | 2500 | 1 | 1200mA | 2000mA | 17 |
| CP602026 |
|
6.2×21×27 | 3.0v | 600 | 1 | 200mA | 300mA | 4.5 |
| CP502440 |
|
5.0×24×42 | 3.0v | 1200 | 1 | 400mA | 800mA | 8.5 |
| CP501830 |
|
5.2×18×30 | 3.0v | 550 | 5 | 200mA | 300mA | 4.2 |
| CP405050 |
|
4.2×51×51 | 3.0v | 2500 | 5 | 1000mA | 1500mA | 17 |
| CP224147 |
|
2.3×45×49 | 3.0 | 800 | 1 | 500mA | 1200mA | 7 |
| CP155050 |
|
1.6×51×51 | 3.0v | 650 | 5 | 500mA | 1000mA | 6 |
| CP144920 |
|
1.4×49×20 | 3.0v | 150 | 1 | 20mA | 50mA | 2 |
| CP142828 |
|
1.5×29×29 | 3.0v | 150 | 1 | 20mA | 30mA | 1.5 |
| CP042345 |
|
0.45×23×45 | 3.0v | 30 | 0.5 | 20mA | 35mA | 0.8 |
| CP9V |
|
17.5×25.5×48.5 | 9 | 1200 | 5 | 150 | 300 | 39.0 |
*The above data is for reference only. CONTACT US for detailed information and customized solutions.
