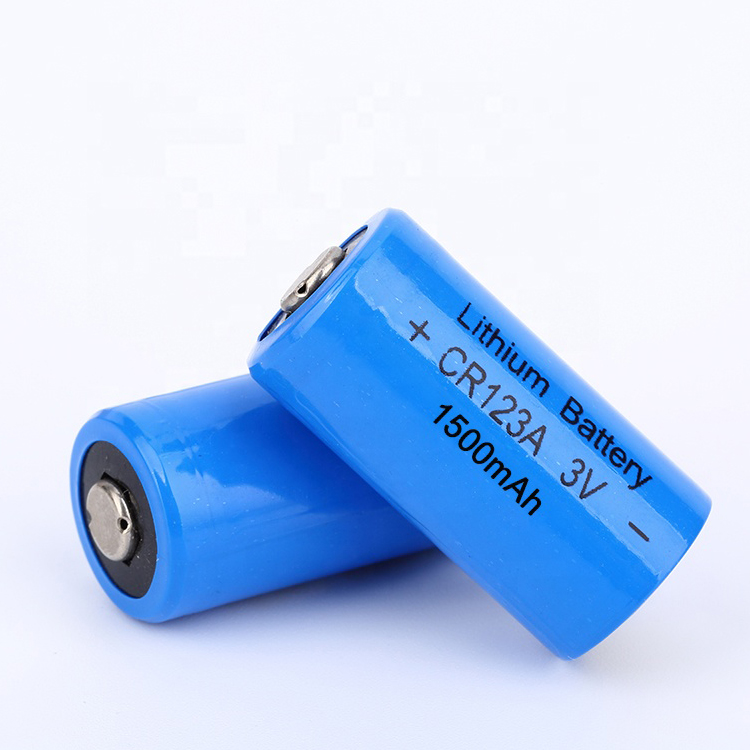

CR123A Li-MnO2 Battery High Power Type

CR123A Li-MnO2 Battery High Power Type

The Applications of CR123A Power Type

Water, gas and electricity meters,Alarm system, GPS system, GSM system, Medical devices, Intelligent IC Meter, Marine equipment, Portable devices, ELTS, EPIRBS, etc.

CR123A Power Type Battery Basic Specifications

Nominal Capacity: 1500 mAh

Nominal Voltage: 3.0 V

Standard Discharge Current: 1mA

Max. Continuous Discharge Current: 1500mA

Max. Pulse Discharge Current: 3000mA

Discharge Cut-off Voltage: 2.0V

Weight: Approx. 14g

Operating Temperature: -40~85℃

Storage Condition: Temperature ≤ 30℃; Humidity ≤ 75%RH

Dimension: 14.5mm* 33.5mm(Dia*H)


CR123A Power Type Battery Features:

High energy density.

Outstanding operational temperature range: -40℃ to +85℃.

Stable discharge characteristics.

Low self-discharge: less than 1% per year at room temperature.

Superior shelf life and operational life: up to 10 years.

Safe and environmentally friendly
