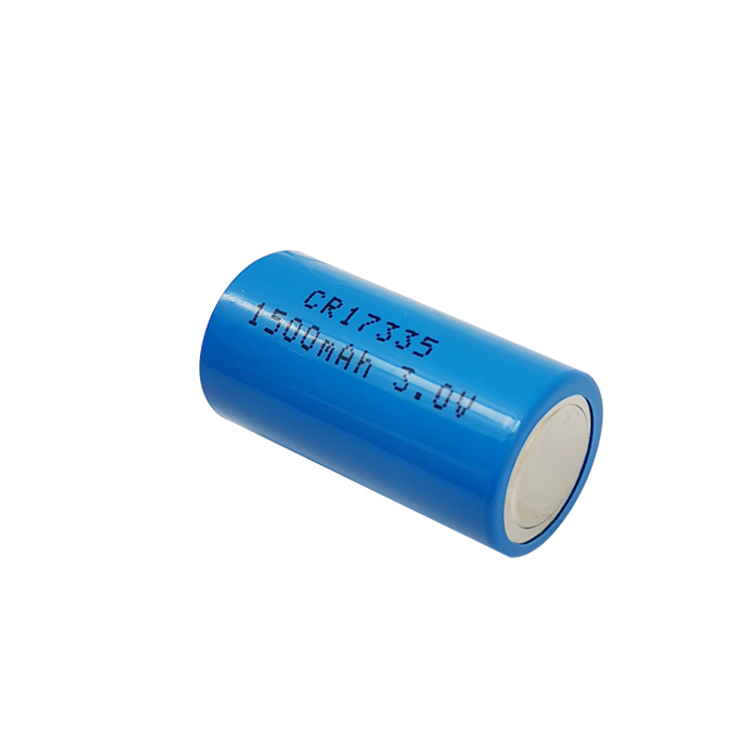

CR17335 Li-MnO2 Battery High Power Type
The Applications of CR17335 Power Type
Water, gas and electricity meters,Alarm system, GPS system, GSM system, Medical devices, Intelligent IC Meter, Marine equipment, Portable devices, ELTS, EPIRBS, etc.
CR17335 Power Type Battery Basic Specifications
Nominal Capacity: 1500 mAh
Nominal Voltage: 3.0 V
Standard Discharge Current: 1mA
Max. Continuous Discharge Current: 1500mA
Max. Pulse Discharge Current: 3000mA
Discharge Cut-off Voltage: 2.0V
Weight: Approx. 20 g
Operating Temperature: -40~85℃
Storage Condition: Temperature ≤ 30℃; Humidity ≤ 75%RH
Dimension: 17.0mm*34.5mm*6.3mm(Dia*H*d)
CR17335 Power Type Battery Features:
High energy density.
Outstanding operational temperature range: -40℃ to +85℃.
Stable discharge characteristics.
Low self-discharge: less than 1% per year at room temperature.
Superior shelf life and operational life: up to 10 years.
Safe and environmentally friendly.
