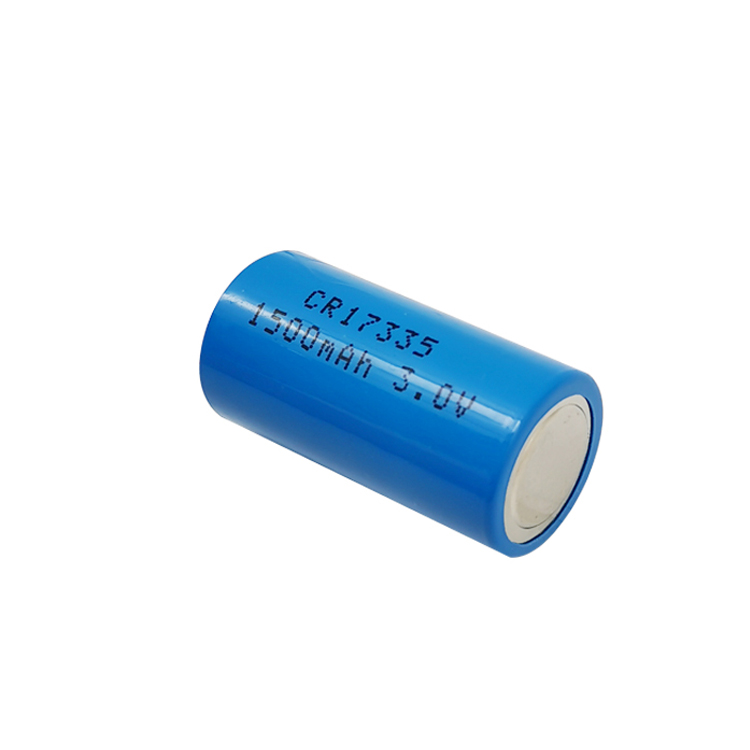

CR17335 Li-MnO2 Battery Energy Type
The Applications of CR17335 Energy Type
Water, gas and electricity meters,Alarm system, GPS system, GSM system, Medical devices, Intelligent IC Meter, Marine equipment, Portable devices, ELTS, EPIRBS, etc.
CR17335 Energy Type Battery Basic Specifications
CR17335
Nominal Capacity: 1500mAh
Nominal Voltage: 3.0V
Standard Discharge Current: 1mA
Max. Continuous Discharge Current: 10mA
Max. Pulse Discharge Current: 100mA
Discharge Cut-off Voltage: 2.0V
Weight: Approx. 22g
Operating Temperature: -40~85℃
CR17335 Energy Type Battery Features:
High open circuit and load voltage: 2.8-3.2V/cell.
High energy density: 270Wh/kg and 510Wh/L
Outstanding operational temperature range: -40℃ to +85℃
Stable discharge characteristics
Low self-discharge: less than 1% per year at room temperature
Superior shelf life and operational life: up to 10 years
Safe and environmentally friendly
