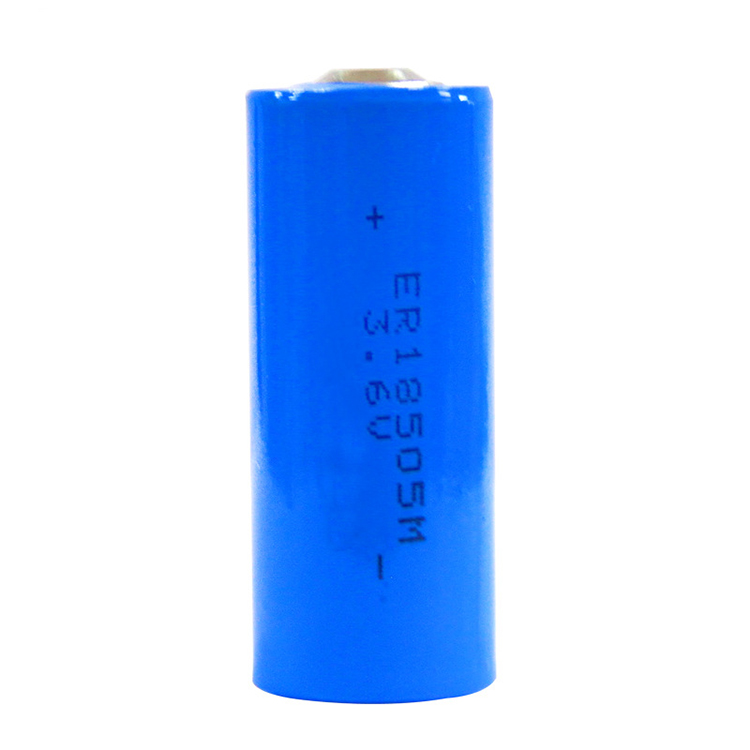

ER18505M Power Type Li-SOCl2 Battery
The Applications of ER18505M
Intelligent IC Meter Gas/water Meter Marine equipments (Pinger, life rescue devices) Portable GPS devices ELTS, EPIRBS, Kilowatt per-hour meters, Electronic Packing meters, PC real-time clocks, Medical Equipment, CMOS memory backup.etc
ER18505M Battery Basic Specifications
Nominal Capacity: 3200mAh
Nominal Voltage: 3.6 V
Standard Discharge Current: 4.0mA
Max. Continuous Discharge Current: 600mA
Max. Pulse Discharge Current: 1000mA
Discharge Cut-off Voltage: 2.0V
Self-discharge Rate: ≤1%
Operating Temperature: -55~85℃
Weight: Approx. 30g
Dimension: 18.7 mm* 50.5 mm(Dia*H)
ER18505M Battery Features:
Excellent shelf life (10 years at room temperature).
Low self-discharge (1% or less per year).
Suited for long-term use with low current.
Best suit for low current discharge.
Wide temperature range from -55℃ to +85℃.
Bobbin-type or flat cells.
