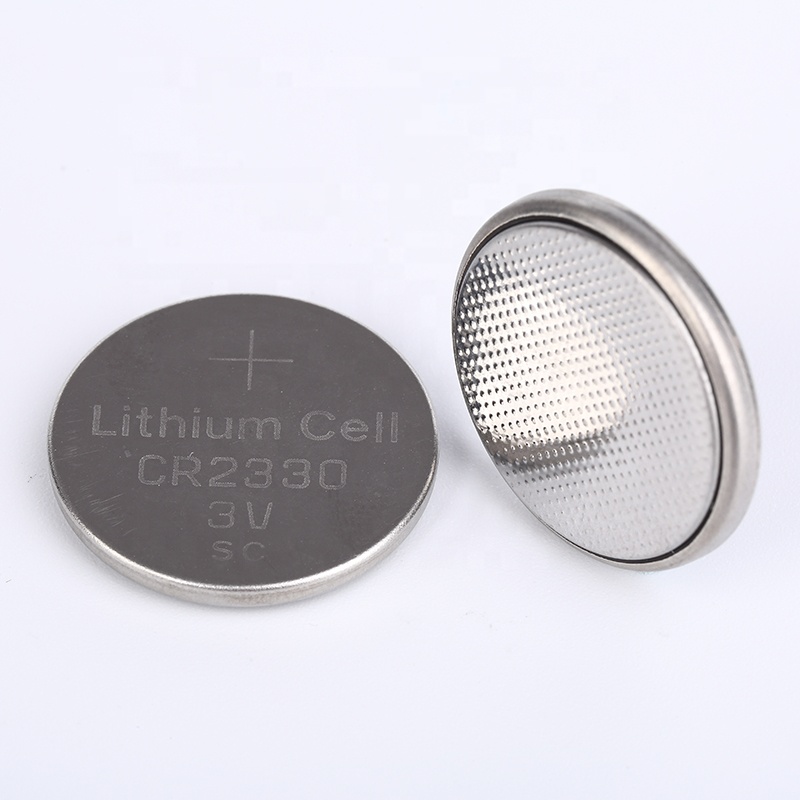

CR2330 Li-MnO2 Battery Coin Type
The Applications of CR2330
Watches Calculators PC notebooks Electronic keys Card-type radios IC cards Memory cards Medical equipment CMOS memory backups
CR2330 Battery Basic Specifications
Model: CR2330 Battery
Battery Type: Lithium battery, Coin type
Nominal voltage: 3.0V , Standard discharge
Nominal capacity: 250mAh , Standard discharge with load15KΩ
Weight: Approx.3.8g
Self-discharge rate: ≤3% , Stored for 12 months at room temperature
Operating temperature: -20~70℃
Storage temperature: 0~ 35℃
Open circuit voltage: 3.10V-3.45V
Dimension: 23.0mm×3.0mm （Dia×H）
CR2330 Battery Features:
Light weight, high voltage and high energy density
Excellent stable discharge characteristics
Outstanding temperature characteristics
Excellent leakage resistance
Excellent long-term reliability
