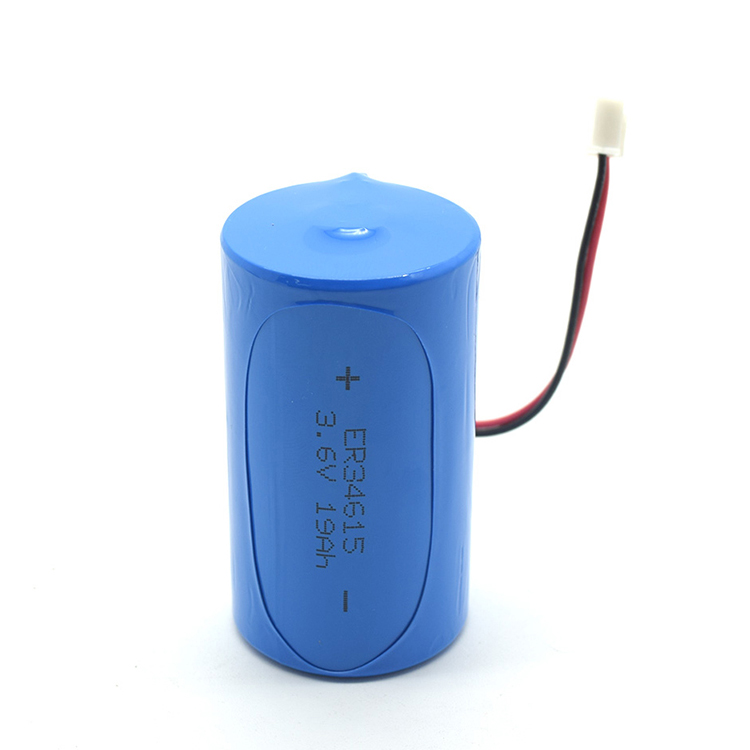

ER34615 Energy Type Li-SOCl2 Battery

ER34615 Energy Type Li-SOCl2 Battery

The Applications of ER34615

Intelligent IC Meter Gas/water Meter Marine equipments (Pinger, life rescue devices) Portable GPS devices ELTS, EPIRBS, Kilowatt per-hour meters, Electronic Packing meters, PC real-time clocks, Medical Equipment, CMOS memory backup.etc

ER34615 Battery Basic Specifications

Nominal Capacity: 19Ah

Nominal Voltage: 3.6 V

Standard Discharge Current: 5.0mA

Max. Continuous Discharge Current: 2000mA

Max. Pulse Discharge Current: 400mA

Discharge Cut-off Voltage: 2.0V

Self-discharge Rate: ≤1%

Operating Temperature: -55~85℃

Weight: Approx. 115g

Dimension:34.0 mm* 61.5 mm(Dia*H)


ER34615 Battery Features:

Excellent shelf life (10 years at room temperature).

Low self-discharge (1% or less per year).

Suited for long-term use with low current.

Best suit for low current discharge.

Wide temperature range from -55℃ to +85℃.

Bobbin-type or flat cells.
