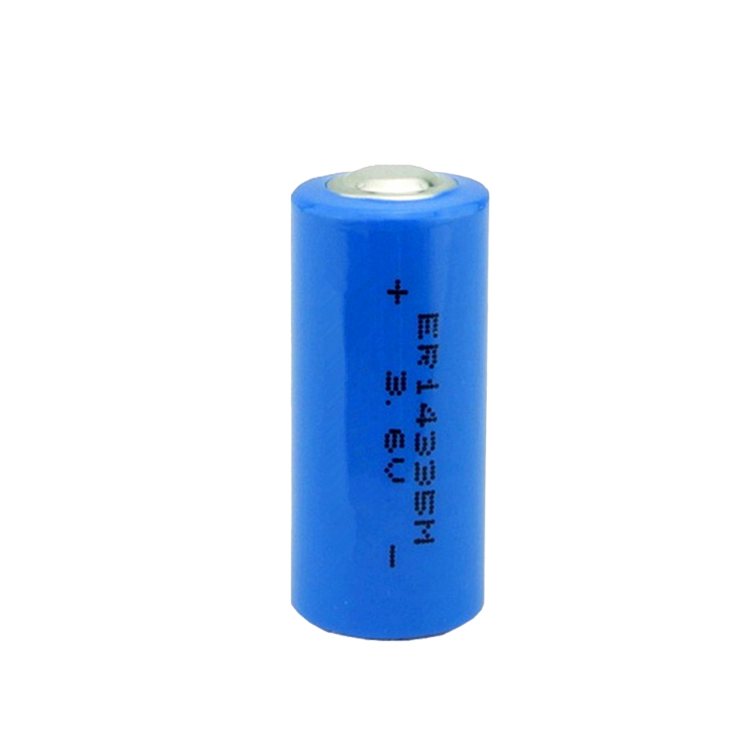

ER14335M Power Type Li-SOCl2 Battery
The Applications of ER14335M
Intelligent IC Meter Gas/water Meter Marine equipments (Pinger, life rescue devices) Portable GPS devices ELTS, EPIRBS, Kilowatt per-hour meters, Electronic Packing meters, PC real-time clocks, Medical Equipment, CMOS memory backup.etc
ER14335M Battery Basic Specifications
Battery Model: ER14335M
Size: 2/3AA battery
Chemistry: Lithium Thionyl Chloride Battery
Nominal Capacity: 1300mAh
Nominal Voltage: 3.6V
Standard Discharge Current: 2.0mA
Max. Continuous Discharge Current: 200mA
Max. Pulse Discharge Current: 400mA
Discharge Cut-off Voltage: 2.0V
Weight Approx. : 13g
Self-discharge Rate: ≤1%
Operating Temperature: -55~85℃
Dimension: 14.5mm×33.0mm （Dia×H）
ER14335M Battery Features:
Excellent shelf life (10 years at room temperature).
Low self-discharge (1% or less per year).
Suited for long-term use with low current.
Best suit for low current discharge
Wide temperature range from -55℃ to +85℃
Bobbin-type or flat cells.
